TWIN IMPELLER CENTRIFUGAL WATER PUMP
2 STAGE CENTRIFUGAL PUMP
Working Conditions1. Suction lift up to 8m
2. Ambient temperature up to +40 ºC
3. Liquid temperature up to +40 ºCPump Conditions1. Cast iron pump body and support
2. Brass impeller Motor Conditions1. Two-pole standard induction motor (n=2850 r.p.m)
2. Copper winding
3. Stainless steel welded shaft / 45# steel shaft
4. Insulation calss:B
5. Protection:IP44
6. Single-phase: 220V/50Hz, 60Hz if request
Three-phase: 380V/50Hz, 60Hz if request
Technical Parameter
| NO. | MODEL | POWER | MAX.FLOW | MAX.HEAD | MAX.SUCT | INLET/OUTLET | GW | PACKING DIMENSION |
| KW | HP | (L/min) | (m) | (m) | (in) | (kg) | (mm) |
| 1 | SCM-22 | 0.37 | 0.5 | 80 | 22 | 8 | 1''x1'' | 9.2 | 310×170×230 |
| 2 | SCM-42 | 0.55 | 0.75 | 95 | 25 | 8 | 1''x1'' | 12 | 340×210×260 |
| 3 | SCM-50 | 0.75 | 1.0 | 120 | 32 | 8 | 1''x1'' | 12.5 | 340×210×260 |
| 4 | 2MCP25-140 | 1.1 | 1.5 | 110 | 40 | 8 | 11/4''x1'' | 23 | 445×243×300 |
| 5 | 2MCP160-160 | 1.5 | 2.0 | 120 | 55 | 8 | 11/4''x1'' | 25 | 445×243×300 |
| 6 | 2MCP160-160B | 1.5 | 2.0 | 120 | 55 | 8 | 11/4''x1'' | 25 | 465×255×310 |
| 7 | 2MCP180-180 | 2.2 | 3.0 | 130 | 65 | 8 | 11/4''x1'' | 30 | 445×243×300 |
| 8 | 2MCP50-200 | 1.5 | 2.0 | 110 | 60 | 8 | 11/2''x1 1/4'' | 25 | 485×260×320 |
| 9 | 2MCP50-300 | 2.2 | 3.0 | 160 | 65 | 8 | 11/2''x1 1/4'' | 27 | 485×260×320 |
Application Scenarios
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from materials from which the pump is made.
The high efficiency and adaptability of these pumps to even the most unusual of applications, makes the ideal for use in the domestic, civil and industrial sectors, in particular for the distribution of water in combination with pressure sets, for pressure sets, for pressure boosting and in fire-fighting sets.
The pump should be installed in and enclosed environment, or at least sheltered from inclement weather.

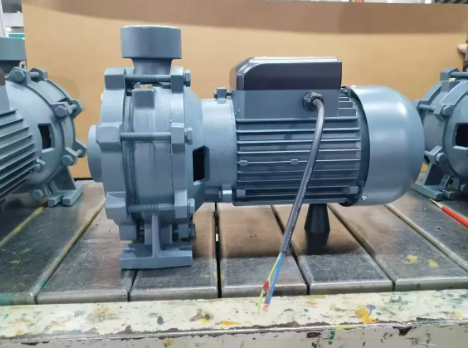

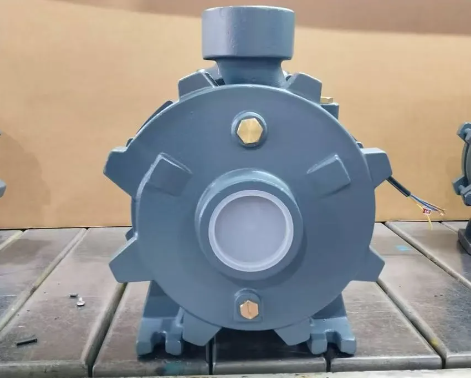

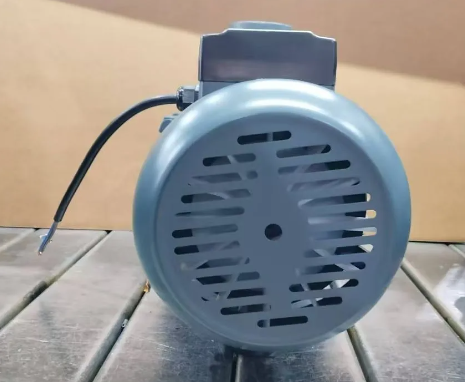

Product Display
FAQ
01 ABOUT OEM
OEM packing is available only if the quantity of single model reaches 50pcs, if not, it is expected that the buyers will pay the OEM packing charges extra.
02 ABOUT PAYMENT TERM
TT: 30% before the shipment, the rest paid against BL copy.
LC: LC AT SIGHT or LC 30 DAY.
03 ABOUT DELIVERY TERM
25-35 days on receipt of the down payment.
04 ABOUT THE SAMPLE
Samples are available, the buyer is expected to cover the sample costs and freight.
05 ABOUT WARRANTY
1.We offer warranty 12 months, since the date the goods arrive the customer's warehouse.
2.Within this period, adjustment, repair or replacement of parts or whole will be performed without charge except in the case of damage caused by accidents, misuse, tampered or lack of care.
3.We will always include 2% free spare parts which can be easily damaged in each shipment for your regular maintenance.
