QY Series Stainless Steel Submersible Electric Pump Oil Immersed Submersible Electric Pump For Sale

Product Description

The oil immersion type submersible pump is a portable shallow water drainage and irrigation equipment combining pumps and machines. Its feature is that the motor is filled with mechanical oil, which improves the working conditions of the mechanical seal, and the external water is less likely to enter the motor. The oil quickly conducts the heat coming from the motor and has a good cooling effect, which greatly reduces the temperature rise of the motor, thus increasing the overload capacity of the submersible electric pump. In addition, the bearings of oil-immersed submersible electric pumps are immersed in oil, and the lubrication and cooling are guaranteed, so the bearing life is longer than other types of submersible electric pumps.

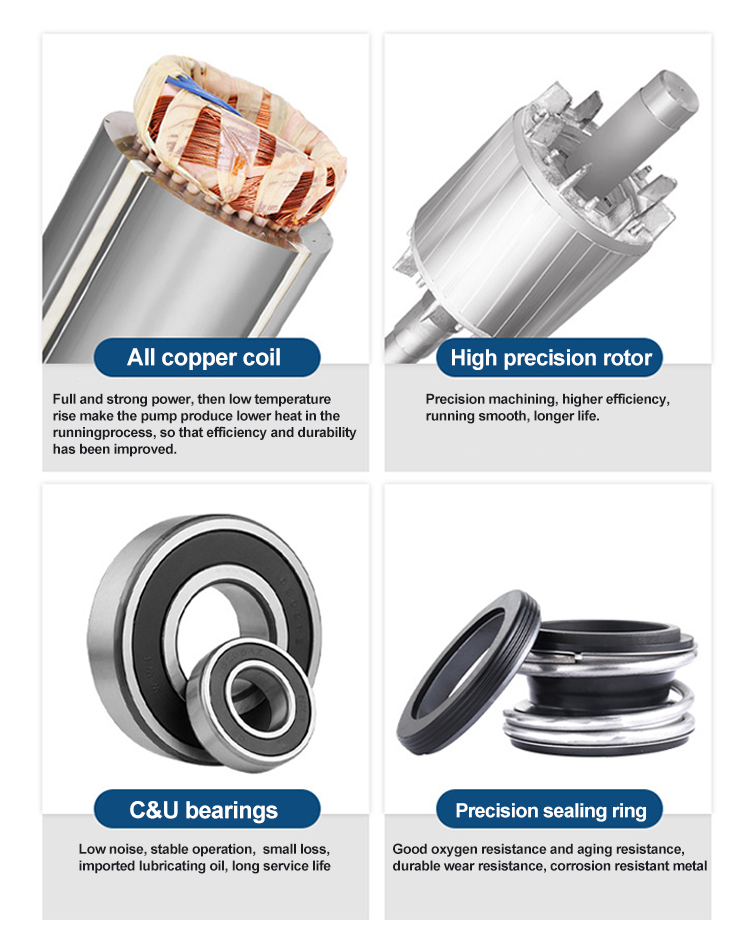

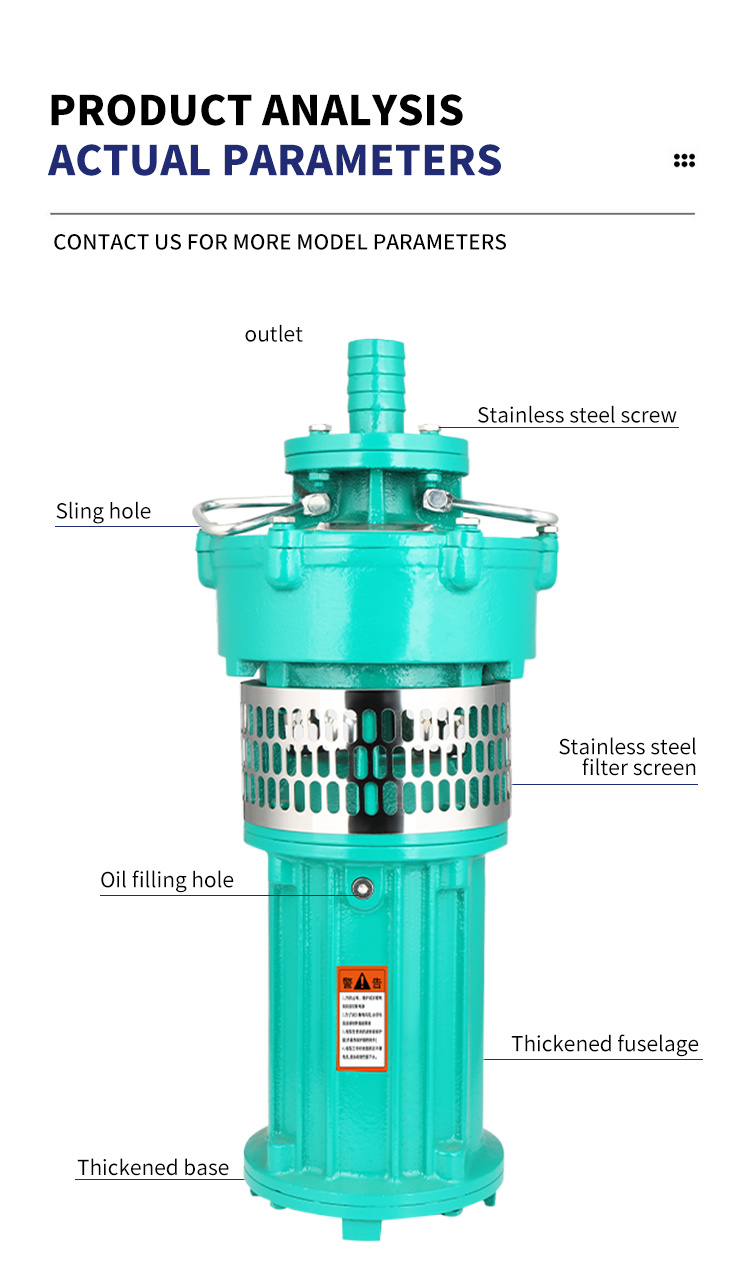

This QY Electric Pump consists of three parts: water pump, seal and motor. The water pump is located on the upper part of the electric pump, which is a centrifugal or axial flow structure, and the motor is located on the lower part of the electric pump, which is an oil-filled three-phase asynchronous motor. The oil chamber adopts a double-end mechanical seal, and the exterior adopts a single-end mechanical seal, and the "O" type oil-resistant rubber sealing ring is used as a static seal at each fixed seam seal. The inside of the barrel is filled with oil, which has the characteristics of low temperature rise and long service life.

Performance and Advantages

◆ Big capacity , high Lift , strong suction
◆ The outside water is not easy to enter the inside of the pump, the insulation performance of the oil is greater than that of air, which effectively increases the insulation of the pump
◆ The oil quickly conducts the heat inside the motor, the cooling effect is good, the temperature of the motor drops. significantly, the overload capacity is increased, and the service life is increased. The bearings are also immersed in the oil, and cooling and lubrication are guaranteed.

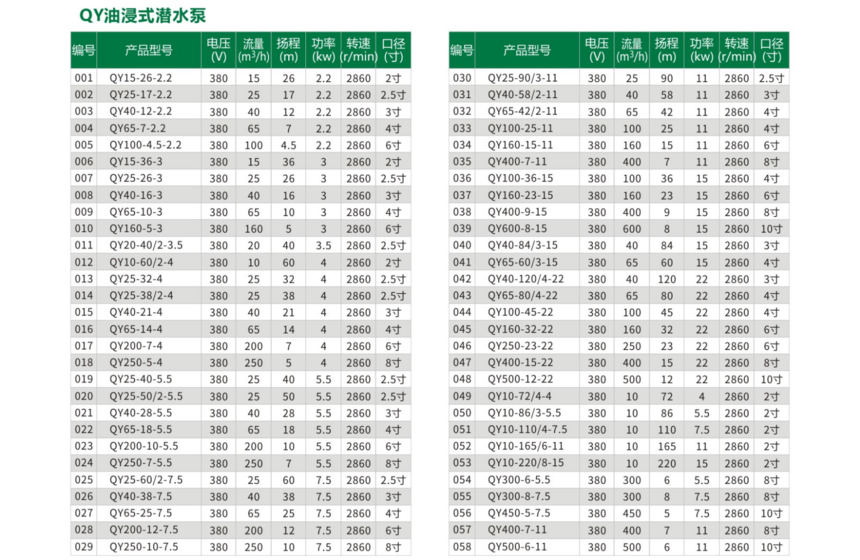

Technical Parameter

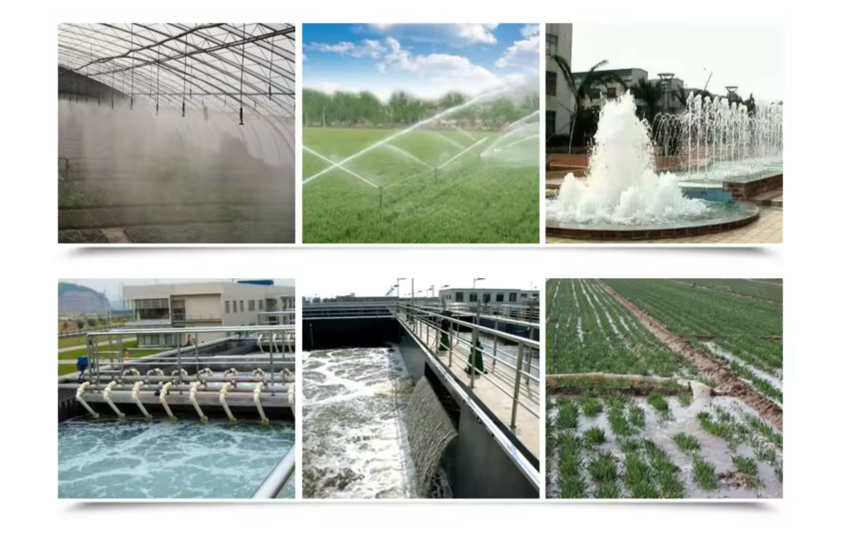

Application Scenarios

① agricultural irrigation and drainage;
② water tower water supply;
③ fountains ;
④ flood control and drainage
⑤ municipal construction drainage

FAQ

01  ABOUT OEM

      OEM packing is available only if the quantity of single model reaches 50pcs, if not, it is expected that the buyers will pay the OEM packing charges extra.

02  ABOUT PAYMENT TERM

      TT: 30% before the shipment, the rest paid against BL copy.

       LC: LC AT SIGHT or LC 30 DAYS.

03  ABOUT DELIVERY TERM

      25-35 days on receipt of the down payment.

04   ABOUT THE SAMPLE

      Samples are available, the buyer is expected to cover the sample costs and freight.

05   ABOUT WARRANTY

       1.We offer warranty 12 months, since the date the goods arrive the customer's warehouse.

       2.Within this period, adjustment, repair or replacement of parts or whole will be performed without charge except in the case of demage caused by accidents, misuse, tampered or lack of care.

       3.We will always include 2% free spare parts which can be easily damaged in each shipment for your regular maintenance.
