Product Feature
* PUMP
Max. immersion depth: 5m
Max. liquid temperature: +40ºC
Fluid temperature up to: +35ºC
Cast iron pump body
Aluminum impeller
* MOTOR
Copper winding
Single phase / continuous work
Built-in thermal protector
Shaft: stainless steel welded shaft / 45# steel be electroplated
Insulation class: B or F
Protection class: IP X8
Technical Parameter
| MODEL | POWER | FLOW
(m³/h) | Head
(m) | OUTLET
(in) | G.W.
(kg) | PACKING
DIMENSION
(MM) |
| kW | HP |
| QDX3-10-0.25 | 0.25 | 0.34 | 3 | 10 | 1" | 6 | 390X200X180 |
| QDX1.5-16-0.37 | 0.37 | 0.5 | 1.5 | 16 | 1" | 9 | 400X220X190 |
| QDX3-20-0.55 | 0.55 | 0.75 | 3 | 20 | 1" | 12 | 430X205X200 |
| QDX10-10-0.55 | 0.55 | 0.75 | 10 | 10 | 2" | 12 | 430X205X200 |
| QDX1.5-32-0.75 | 0.75 | 1.0 | 1.5 | 32 | 1" | 14.5 | 440X260X240 |
| QDX10-16-0.75 | 0.75 | 1.0 | 10 | 16 | 2" | 14.5 | 440X260X240 |
| QDX15-10-0.75 | 0.75 | 1.0 | 15 | 10 | 2.5" | 14.5 | 440X260X240 |
| QDX30-7-0.85 | 0.85 | 1.2 | 30 | 7 | 3" | 16.5 | 440X260X240 |
| QDX40-7-1.1 | 1.1 | 1.5 | 40 | 7 | 3" | 18 | 590X350X250 |
| QDX40-9-1.5 | 1.5 | 2.0 | 40 | 9 | 3" | 20 | 590X350X250 |
| QDX65-7-2.2 | 2.2 | 3.0 | 65 | 7 | 4" | 22 | 530X350X285 |
| QDX10-20/2-1.5 | 1.5 | 2.0 | 10 | 20 | 2" | 18.5 | 270X215X515 |
| QDX5-25/2-1.5 | 1.5 | 2.0 | 5 | 25 | 11/4" | 18.5 | 270X215X515 |
Working ConditionsPump Installation and Applications

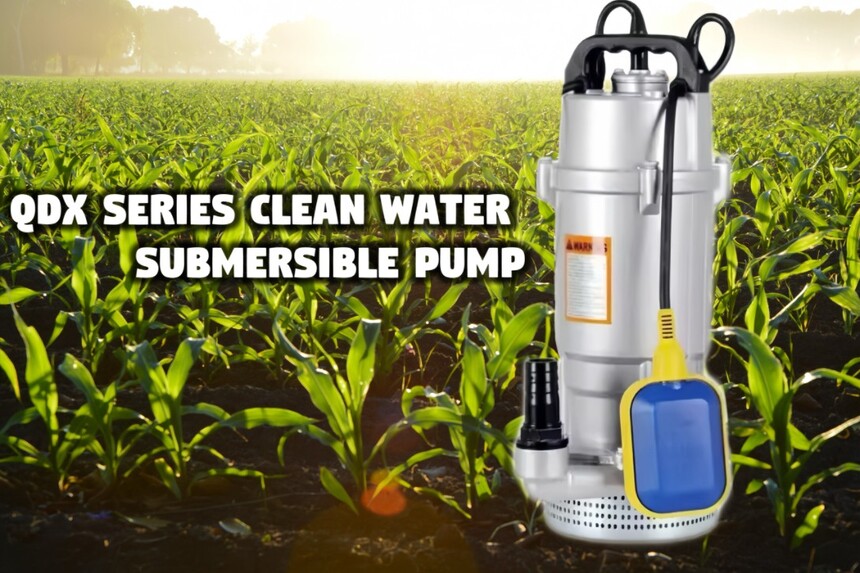

QDX series vertical submersible pumps are fitted with an open or closed impeller, and are suitable for water cluster boxes, farmland, industrial & mining enterprises, construction sites, ship and family, and characterized by less volume, light weight and convenient operation etc.
Application Scenarios
Loading
FAQ
01 ABOUT OEM
OEM packing is available only if the quantity of single model reaches 50pcs, if not, it is expected that the buyers will pay the OEM packing charges extra.
02 ABOUT PAYMENT TERM
TT: 30% before the shipment, the rest paid against BL copy.
LC: LC AT SIGHT or LC 30 DAY.
03 ABOUT DELIVERY TERM
25-35 days on receipt of the down payment.
04 ABOUT THE SAMPLE
Samples are available, the buyer is expected to cover the sample costs and freight.
05 ABOUT WARRANTY
1.We offer warranty 12 months, since the date the goods arrive the customer's warehouse.
2.Within this period, adjustment, repair or replacement of parts or whole will be performed without charge except in the case of demage caused by accidents, misuse, tampered or lack of care.
3.We will always include 2% free spare parts which can be easily damaged in each shipment for your regular maintenance.
