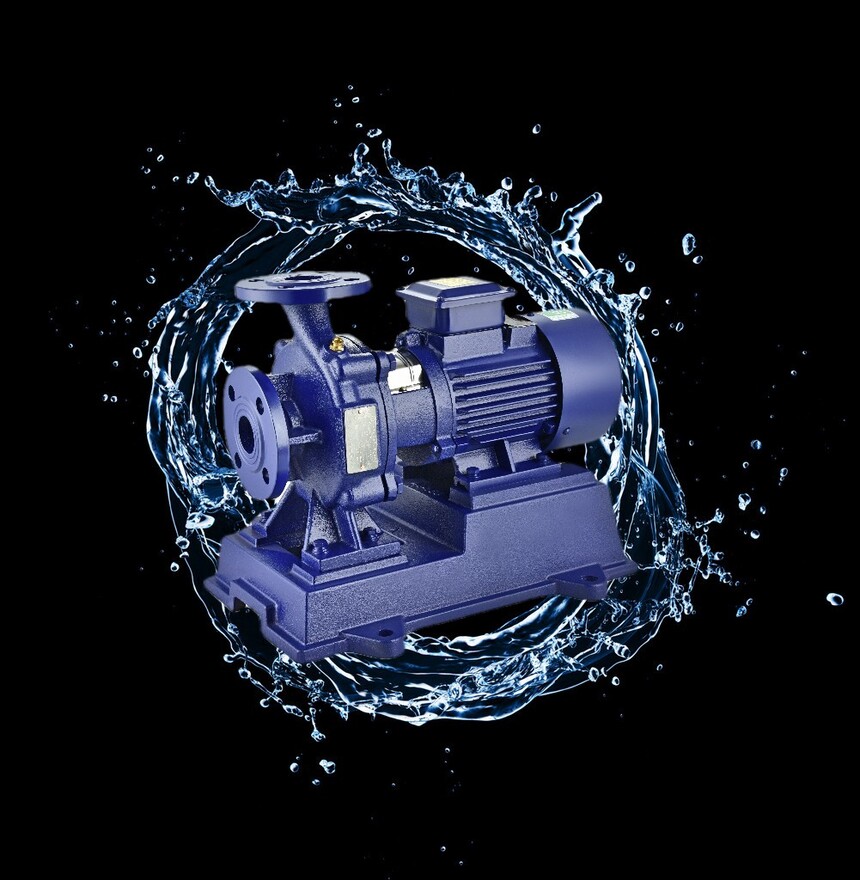

ISW Horizontal Single-stage Centrifugal Industrial Hot Water Boiler Circulating High-pressure Pipeline Electric Pump
Collect
ISW horizontal centrifugal pump is designed according to the unique structural combination of IS centrifugal pump and vertical pump, and is designed and manufactured in strict accordance with the international standard ISO2858 and the new national pipeline centrifugal pump standard JB/T53058-93. The pump is optimized by domestic advanced hydraulic model. At the same time, hot water pump, high-temperature pump, chemical pump, oil pump, etc. are derived from ISW based on different operating temperatures, media, etc., which are the products approved and promoted by the current national standard.
Product features:1. Smooth operation: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation without vibration.
2. No water leakage: Carbide seals of different materials ensure no leakage when conveying different media.
3. Low noise: The water pump under the two low-noise bearings runs smoothly, except for the faint sound of the motor, basically no noise.
4. Low failure rate: The structure is simple and reasonable, and the key parts are matched with international first-class quality, and the trouble-free working time of the whole machine is greatly improved.
5, easy maintenance: replacement of seals, bearings, simple and convenient. 6. Less space occupation: The outlet can be left, right and upward, which is convenient for pipeline arrangement and installation and saves space.
The main purpose:1. ISW type pipeline centrifugal pump is used to transport clean water and other liquids with similar physical and chemical properties to clean water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden irrigation, fire pressurization and equipment matching. T:≤80℃.
2. ISWR (WRG) hot water (high temperature) circulating pump is widely used in energy, metallurgy, chemical industry, textile, papermaking, as well as high-temperature hot water pressurized circulating transportation of boilers in hotels and restaurants, and circulating pumps for urban heating systems. ISWR operating temperature T:≤120℃, WRG operating temperature T:≤240℃.
3. ISWH (IHW) horizontal chemical pump is used for conveying liquids that do not contain solid particles, are corrosive, and have a viscosity similar to that of water. , using temperature T: -20℃-120℃. 4. ISWB type horizontal oil pump is used to transport petroleum products such as gasoline, diesel oil and kerosene. The operating temperature is T: -20℃-120℃.
