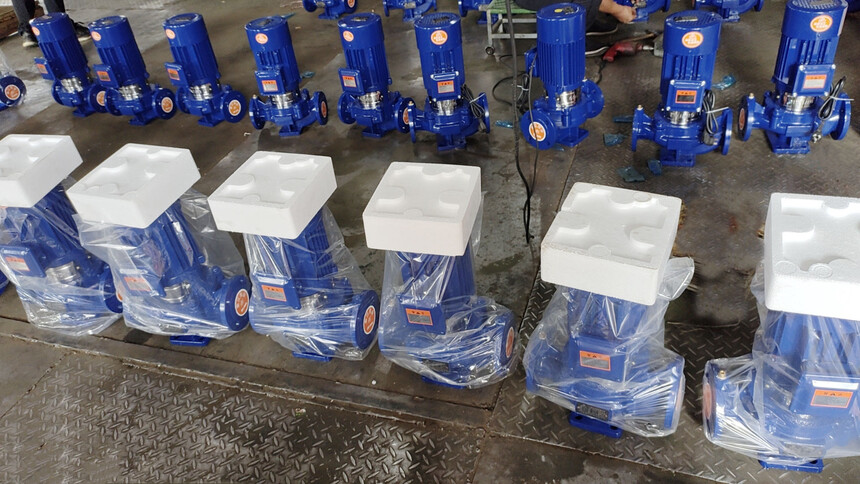

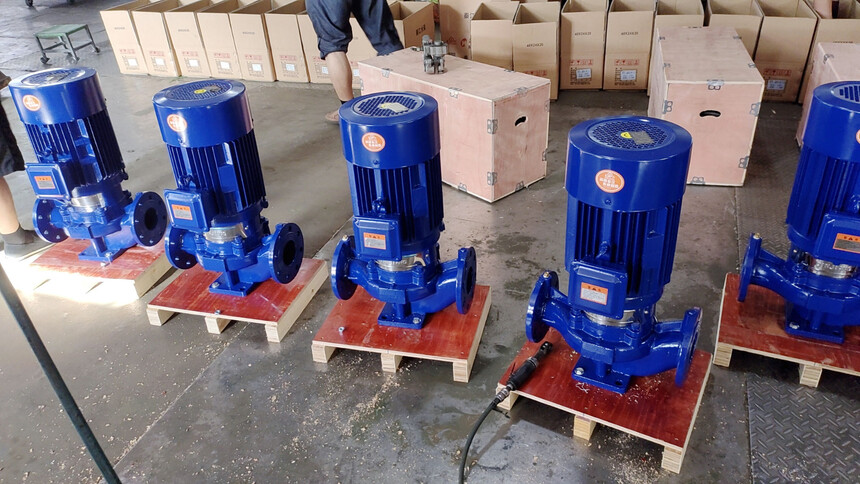

Vertical pipeline pump IRG single-stage centrifugal pump Agricultural irrigation water pump

Features:
1. Easy to mount. Because the inlet and outlet is located on the same central line, the pump can be directly mounted on any part
of the pipeline just as a valve. Covered with a rain-proof cap, it can be operated outdoors.
2. Impeller mounted directly on the long axis of the motor, pump and motor bearing arrangement is reasonable, pump operation can
effectively balance the radial and axial loads, thus ensuring the smooth operation of the pump, small vibration and low noise.
3. Mechanical shaft seal, use of imported titanium alloy seal ring, medium and high temperature mechanical seal with carbide
materials, anti-wearing no leakage.
4. Easy installation and maintenance, no need to open pipeline system, the rotation parts of the pump can be pulled out by
removing the screws on the pump.
5. According to the needs of flow and head, the pump can be used in series or parallel operation mode.

Working Conditions
1. Suction pressure ≤ 1.0MPa, the maximum pump system working pressure≤ 1.6MPa, the pump hydrostatic test pressure ≤ 2.5MPa.
2. Ambient temperature < 40 degrees, relative humidity≤ 40%.
3. Content of solid particles in the medium per unit volume does not exceed 0.1%, particle size < 0.2mm.

Usage
1. IRG vertical pipeline centrifugal pump for conveying water or other liquids that physical and chemical properties similar to
water, like industrial and urban water supply and drainage, high-rise building pressurized water, garden irrigation, fire boost,
long-distance transport, HVAC refrigeration cycle, bathroom and heating equipment for pressurized water circulation, temperature <
80 degrees.
2. IRG vertical hot water pump is used in metallurgy, chemical industry, textile, wood processing, paper and restaurants,
bathrooms, hotels and other high-temperature hot water boiler loop pressurized transport and urban housing heating circulating
pump, temperature below 120 degrees.
circulating pump, temperature 240 degrees below.
3. IHG vertical stainless steel chemical pump for conveying liquids without solid particles, corrosive, viscosity similar to
water, which is used in petroleum, chemical, metallurgical, power, paper, food sectors such as pharmaceuticals and synthetic
fibers, temperature is -20~ 120 degrees.
4. The above model pump with low-speed motor, suitable for occasions that require low noise, and air conditioning water
circulation, etc.
